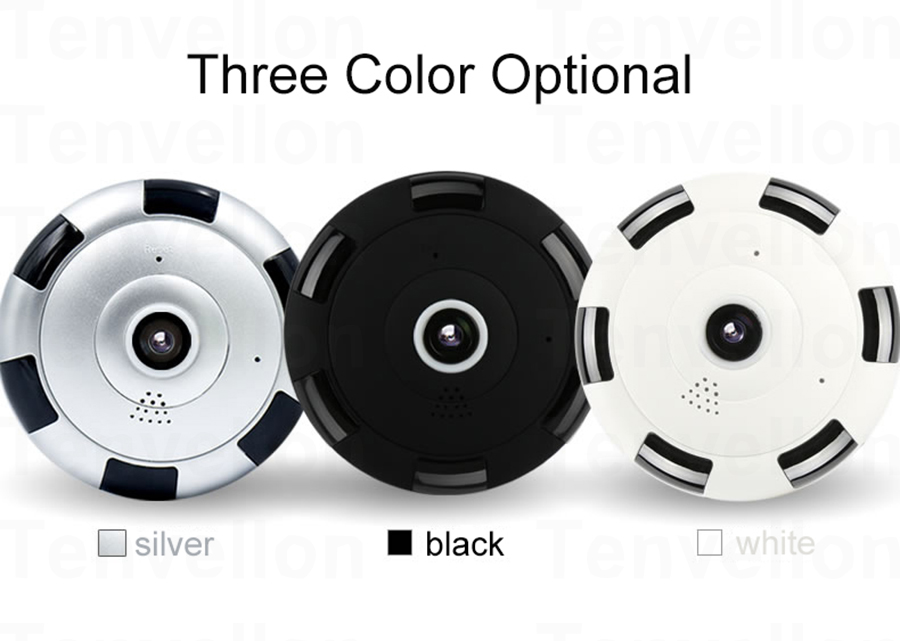

Panoramic Camera GB-NFC01B

360 Panoramic Camera wifi IP Wireless Home Security CCTV fisheye Two Way Audio Infrared Night Version fisheye lens

Description:

1.3M 1/3" SC2135 low illumination CMOS sensor

Cloud storage support

Support RTC clock synchronization function, built-in memory battery, ensure the correct synchronization of video time when there is no power;

Support ONVIF; Support Third-party NVR;

Support for mobile video surveillance( FOR iOS, FOR android);

Video occupied space super small

Video browsing speed industry first

Support thousands of people online at the same time to watch

Clear and bright industry leader

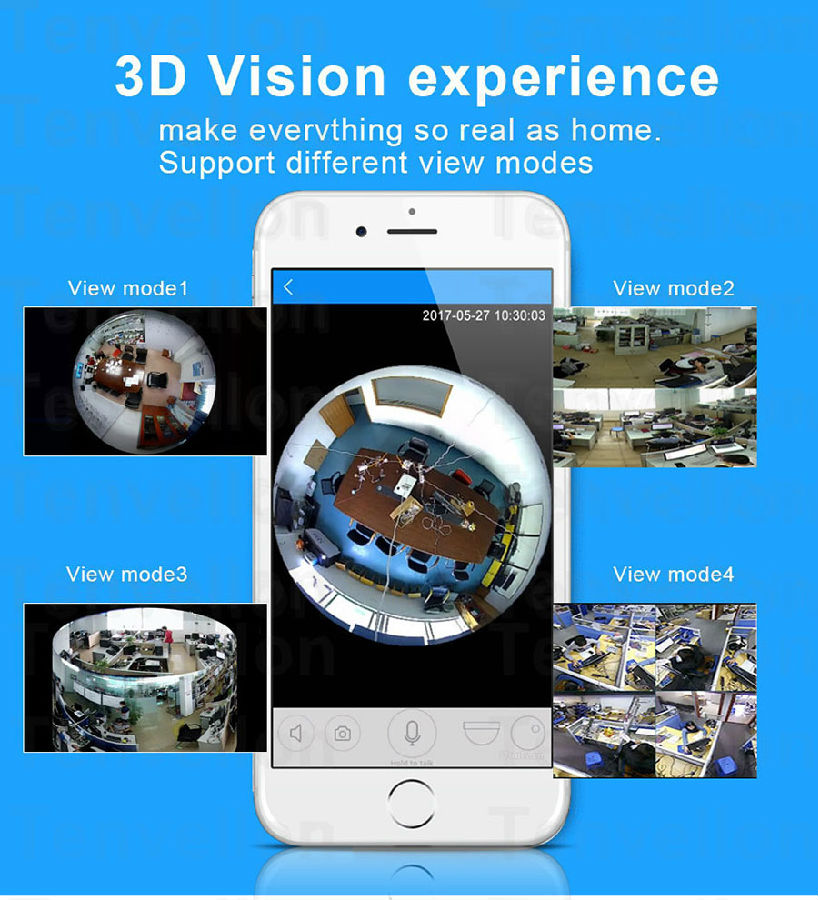

Support multiple display modes(traditional mode, mixed mode, corridor three-dimensional picture scroll mode, panoramic inversion mode )

Specification:

Embedded Processor	For GM8135S: SiP 512Mb DDR,
sensor	For SC2135

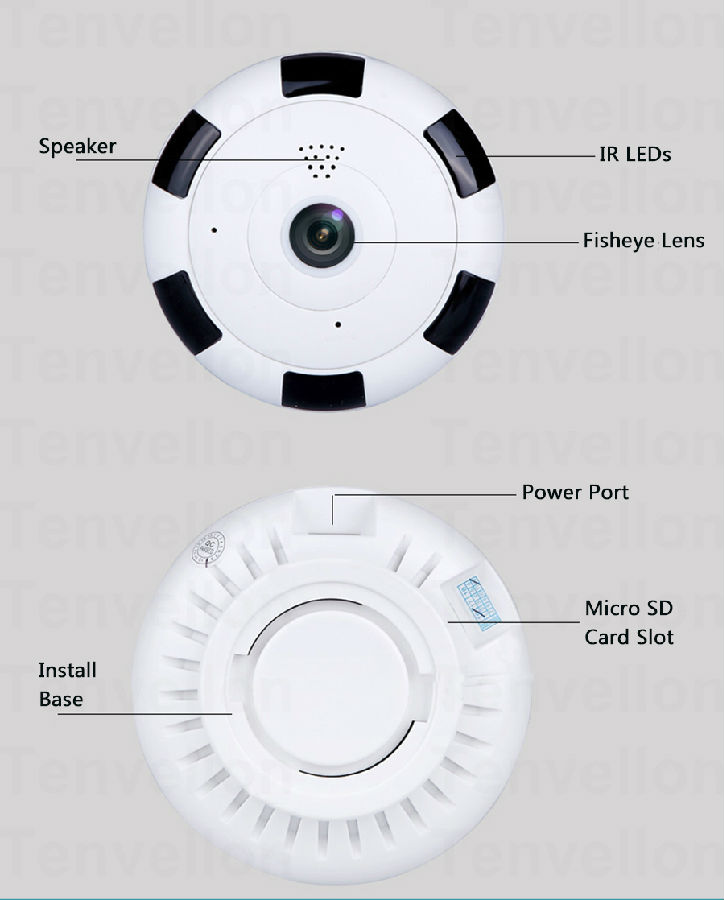

Lens	1/2.5 Fisheye lens，f=1.44mm
View angle	360°

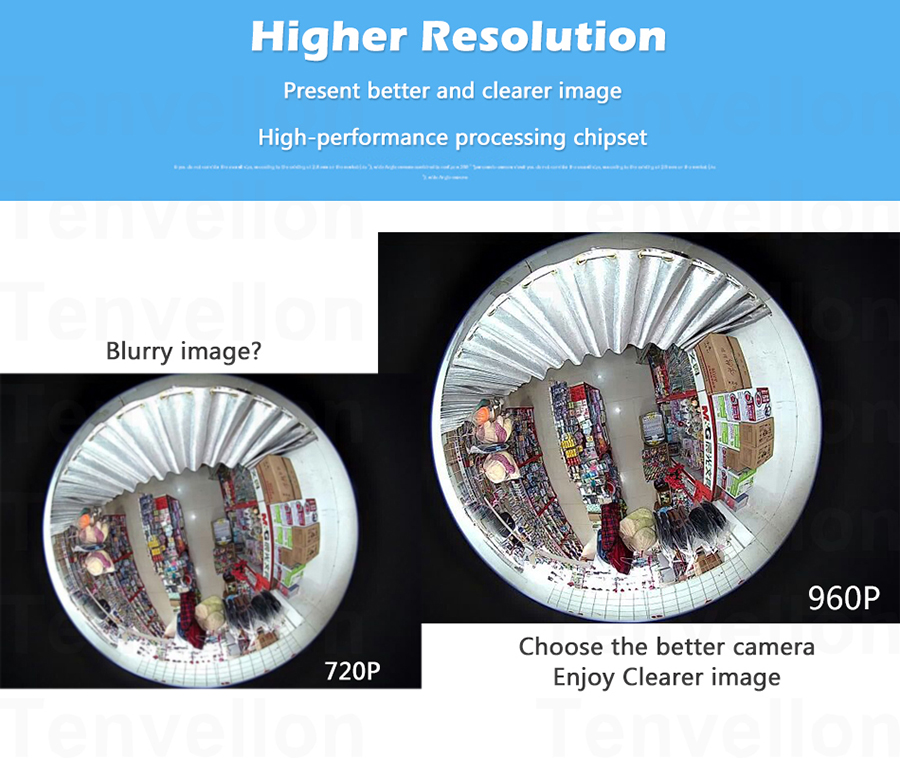

Image pixels	960PH
Minimum illumination	4500mV/Lux-s 0.01Lux F2.0,black/white 0.001Lux F2.0
Day and night	IR-cut double filter automatic switching
Video coding	H.264，dual stream
Video frame rate	25frame/second
Audio coding	ADPCM，support two way voice intercom
Wireless standard	for IEEE802.11b/g/n
Frequency range	2.4GHz～2.4835 GHz
ONVIF	Support ONVIF 2.0
Power port	USB

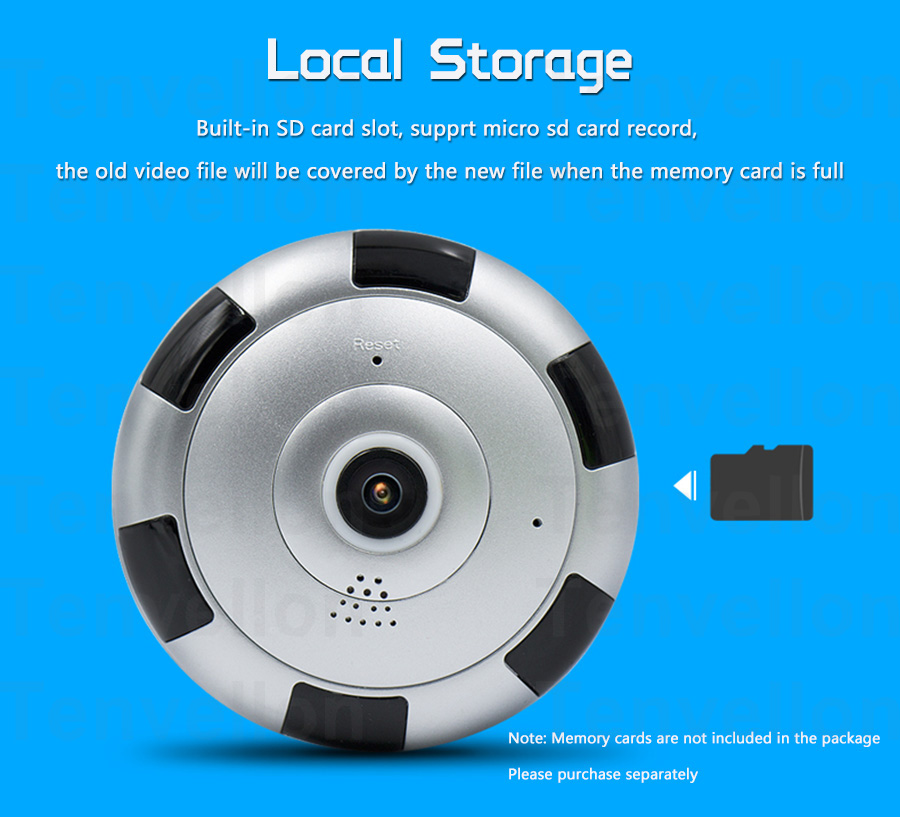

Storage port	1pcs TF（Micro SD）storage port，max 64G
Reset port	Mater reset
Power supply and consumption	DC5V，standard1.6A
Working condition	-10℃~+50℃@humidity 10%~ 95% no condensation

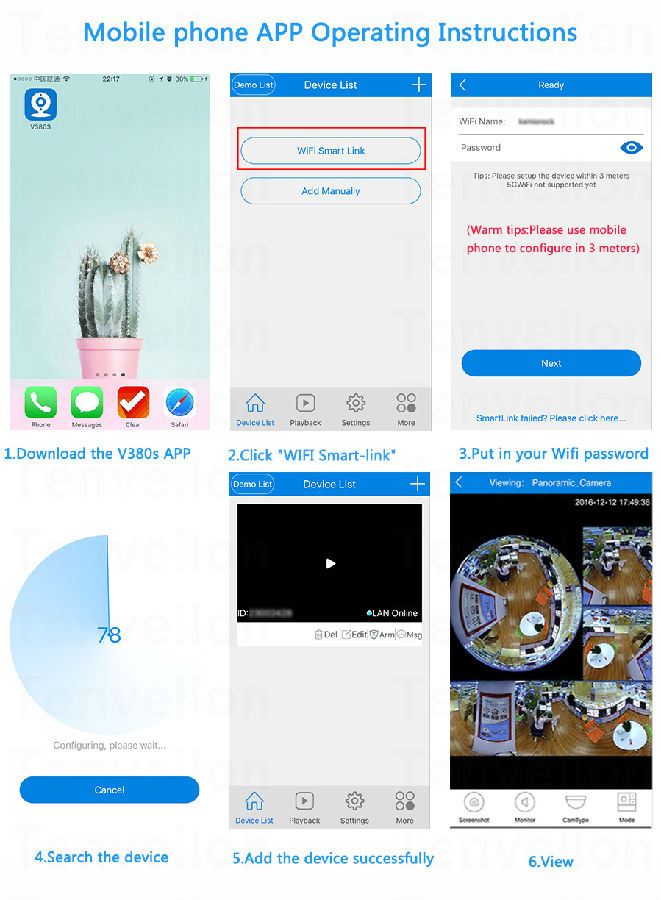

APP function（English）	Support For IOS/Android；
	Support the use of mobile phones to view real-time video, real-time recording, and playback video;
	Support local screen shots by mobile app；
	Support push alarm information screen shot ；
	Support two way voice intercom；
	Support cloud storage；
	IP address can be set through the phone；
	Support multiple display modes(traditional mode, mixed mode, corridor three-dimensional picture scroll mode, panoramic inversion mode )
